Colour Spanclad

Colour Spanclad

Colour Spanclad features a ridge-like design that eliminates exposed fasteners with its concealed lock-joint. This permits the placement of concealed fasteners which minimizes moisture intrusion due to corrosion while providing a clean asethetic profile look.

Features

  • LSL Colour Spanclad features a common lock-joint design that utilizes concealed fasteners which minimizes moisture intrusion

  • Economical compared to aluminum composite panels, Colour Clad can achieve a flat and clean profile with its continual design

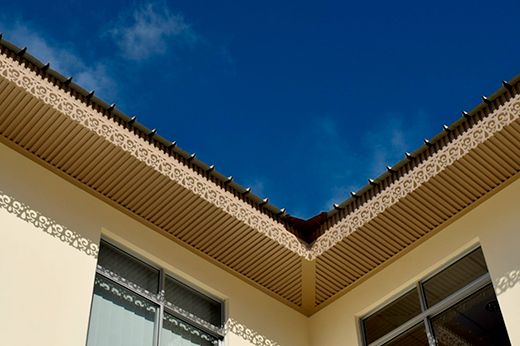

  • Common usage includes, wall cladding, ceiling, exterior finishing and interior walls


Usage

  • Combine with textured sheet metal, Colour Spandclad can provide a visually appealing design
    for Fencing panel and Gate application

  • With the vast versatility of usage, Colour Spanclad can be paired with a variety of colour
    to create the ideal design

  • Concealed Fasteners allows a continual and uninterrupted long span ceiling design


Technical Data

Thickness Available
  • 0.32 mm
  • 0.36 mm
  • 0.40 mm
  • 0.47 mm

Material Specifications

Materials used for LSL Colour LOK meet stringent tests as tensile strenght. QUV simulate, cyclic corrosion,
QCT, gloss uniformly, T-bend, impact resistance and optical admission.

Base Metal Steel Complies With JIS G3312; AS1397; MS1196
Minimum Tensile Strength 350 to 550 MPa
Base Steel Coating Zinc Coated (Z18) or Aluminum Zinc 55% Coated (AZ150)
Primer Coat Epoxy Finish (Top Coat)

Utilizing State-of-the-Art INFRA-RED Coating Technology, Our Paint System provides Ultimate Weathering Resistance
with outstanding Colour Retention Durability:


PREMIUM Series

Paint System Polyester Coated Paint System
Warranty 5 Years Colour Warranty
10 Years Corrosion Warranty
Features Energy-Efficient, Solar Reflectice, Finish meeting, Energy Star standards and requirements.
Environmental Friendly with Mercury and Lead-Free coatings

ELITE Series

Paint System 100% High End Ceramic Polyester Paint
Warranty Warranty 10 Years Colour Warranty
25 Years Corrosion Warranty
Features Energy-Efficient, Solar Reflectice, Finish meeting, Energy Star standards and requirements.
Environmental Friendly with Mercury and Lead-Free coatings

PVDF Series

Paint System Poly Vinyl Fluoride (PVF2), Genuine 700% Full Strength Kynar 500® or Hylar 500® Flourocarbon Paint System
Warranty 20 Years Colour Warranty
25 Years Corrosion Warranty
Features Energy-Efficient, Solar Reflectice, Finish meeting, Energy Star standards and requirements.
Environmental Friendly with Mercury and Lead-Free coatings

Coating Specifications

Coating Specifications
Solar Reflectivity (SR)

Solar reflectivity or reflectance is the ability of a material to reflect solar energy from its surface back into the atmosphere. The SR is value is a number from 0 to 1.0 A Value of 0 indicates that the materials absorbs al solar energy and a value of 1.0 indicates total reflectance. Energy Star requires and initial SR value of 0.25 or higher for steep slope (>2:12) roofs and 0.15 or greater after three years. Low slope roofs require an initial SR value of 0.65 or higher and 0.50 or greater after three year.


Solar Reflectance Index (SRI)

The Solar Reflectance Index is used for compliance with LEED requirements and is calculated according to ASTM E 1980 using values for reflectance and emissivity. Emissivity is a material’s ability to release absorbed energy. To meet LEED requirements a roofing material must have a SRI of 29 or higher for steep slope (>2:12) roofing and a SRI value of 78 or higher for low slope roofing.

  Top Back
  Primer Backer Primer Backer
PREMIUM Series 5 15-18 5 5
ELITE Series 5 18-20 5 5
PVDF Series 5 18-20 5 5
