Colour LOK is a high rib roof with 2 pan using clip-on system profile. This profile is specifically ideal for low pitch roofs with strong wind and heavy rainfall terrain. The anti-leak capillary design and conceal clips on this profile can accept roof pitch to as low as 2 degrees.

Features

  • Most widely used metal roofing profile for commercial projects

  • High Rib anti-leak capillary design and conceal clip provides exceptional water proofing characteristics.

  •  No exposed screws/fasteners hence avoiding leakage problems caused by improper installation

Thickness Available:
  • 0.48 mm
  • 0.54 mm
  • 0.60 mm

Clips & Accessories

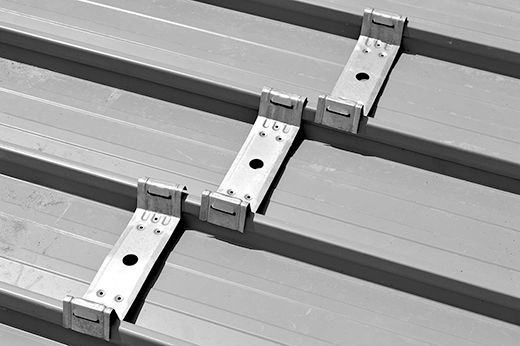

  • The Colour LOK clips are specially designed to achieve great interlocking application.

  • Use Water Head M5 x 30 Self Drilling Screws for fastening of clips to purlins.

  • Use Hex Head M5 x 20 Self Drilling Screws with Neoprene Washer for stitching of flashing or capping onto roof shet.

  • Use Hex Head M5 x 65 Sekf Drilling Screws with Neoprene Washer for fastening of edge of roof sheets to Purlins.


Technical Data

Thickness

Total Coated Thickness (mm) 0.48 0.54 0.6
Base Metal Thickness (mm) 0.42 0.48 0.54

Unit Area

Mass Per Unit Area (kg/m2) 4.61 5.43 6.28
Mass Per Unit Area (kg/m) 0.41 0.51 0.59

Span

Span (m) 1.2 1.6 1.8 2.1 2.4
Thickness
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
0.48 560 4 360 6 240 9 180 12 140 16
0.54 650 4 400 6 240 9 210 12 160 16
0.60 740 4 440 6 260 9 220 12 180 16



Span (m) 2.7 3.0 3.3 3.5
Thickness
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
Safe Load
(kg/m2)
Deflection for above load
(mm)
0.48 105 20 85 25 73 50 60 34
0.54 105 20 95 25 83 50 70 34
0.60 110 23 105 28 90 50 70 35

Material Specifications

Materials used for LSL Colour LOK meet stringent tests as tensile strenght. QUV simulate, cyclic corrosion,
QCT, gloss uniformly, T-bend, impact resistance and optical admission.

Base Metal Steel Complies With JIS G3312; AS1397; MS1196
Minimum Tensile Strength 350 to 550 MPa
Base Steel Coating Zinc Coated (Z18) or Aluminum Zinc 55% Coated (AZ150)
Primer Coat Epoxy Finish (Top Coat)

Utilizing State-of-the-Art INFRA-RED Coating Technology, Our Paint System provides Ultimate Weathering Resistance
with outstanding Colour Retention Durability:


PREMIUM Series

Paint System Polyester Coated Paint System
Warranty 5 Years Colour Warranty
10 Years Corrosion Warranty
Features Energy-Efficient, Solar Reflectice, Finish meeting, Energy Star standards and requirements.
Environmental Friendly with Mercury and Lead-Free coatings

ELITE Series

Paint System 100% High End Ceramic Polyester Paint
Warranty Warranty 10 Years Colour Warranty
25 Years Corrosion Warranty
Features Energy-Efficient, Solar Reflectice, Finish meeting, Energy Star standards and requirements.
Environmental Friendly with Mercury and Lead-Free coatings

PVDF Series

Paint System Poly Vinyl Fluoride (PVF2), Genuine 700% Full Strength Kynar 500® or Hylar 500® Flourocarbon Paint System
Warranty 20 Years Colour Warranty
25 Years Corrosion Warranty
Features Energy-Efficient, Solar Reflectice, Finish meeting, Energy Star standards and requirements.
Environmental Friendly with Mercury and Lead-Free coatings

Coating Specifications

Coating Specifications
Solar Reflectivity (SR)

Solar reflectivity or reflectance is the ability of a material to reflect solar energy from its surface back into the atmosphere. The SR is value is a number from 0 to 1.0 A Value of 0 indicates that the materials absorbs al solar energy and a value of 1.0 indicates total reflectance. Energy Star requires and initial SR value of 0.25 or higher for steep slope (>2:12) roofs and 0.15 or greater after three years. Low slope roofs require an initial SR value of 0.65 or higher and 0.50 or greater after three year.


Solar Reflectance Index (SRI)

The Solar Reflectance Index is used for compliance with LEED requirements and is calculated according to ASTM E 1980 using values for reflectance and emissivity. Emissivity is a material’s ability to release absorbed energy. To meet LEED requirements a roofing material must have a SRI of 29 or higher for steep slope (>2:12) roofing and a SRI value of 78 or higher for low slope roofing.

  Top Back
  Primer Backer Primer Backer
PREMIUM Series 5 15-18 5 5
ELITE Series 5 18-20 5 5
PVDF Series 5 18-20 5 5
