Standard Basic Cabin Size
CODE | W(ft) | L(ft) | H(ft) |
PC810 | 8 | 10 | 8 |
PC815 | 8 | 15 | 8 |
PC820 | 8 | 20 | 8 |
PC830 | 8 | 30 | 8 |
PC840 | 8 | 40 | 8 |
PC1020 | 10 | 20 | 8 |
PC1030 | 10 | 30 | 8 |
PC1040 | 10 | 40 | 8 |
Standard Basic Include
- Galvanized 6mm C-Channel Footing
- Forklift Pocket
- Compodeck Roofing Insulation
- 1 Nos 900mm x 2,100mm metal flush door
- 1 Nos 1800mm x 900mm aluminum framed sliding window with tinted glass
Customizing Options
- Size and Dimension
- Colours and Wall Design
- Electrical and Wiring Components
- Toilet and Water Piping Options
Crosss Section View
- White foam sandwich panel insulation Ceiling
- 9mm Gypsum board wall fitted to frame
- W900mm x H2100mm Metal Flush Door
- 1800mm x 900mm Aluminum frame sliding window with Tinted glass
- 18mm thick plywood flooring
- Forklift Pocket
- LSL Compodeck Metal Roofing
- LSL Metal Battern A5005 / A3008
- Lifting Lug fixed to top structure fram
- Optional Color Dek or Color Clad Wall
- LSL LC 10020 purlin structure frame to be welded to Footing
- Portable Cabin Base Frame
- 2ft. span between Lip-Channel
- Hot Dip Galvanised 6mm C-Channel Footing

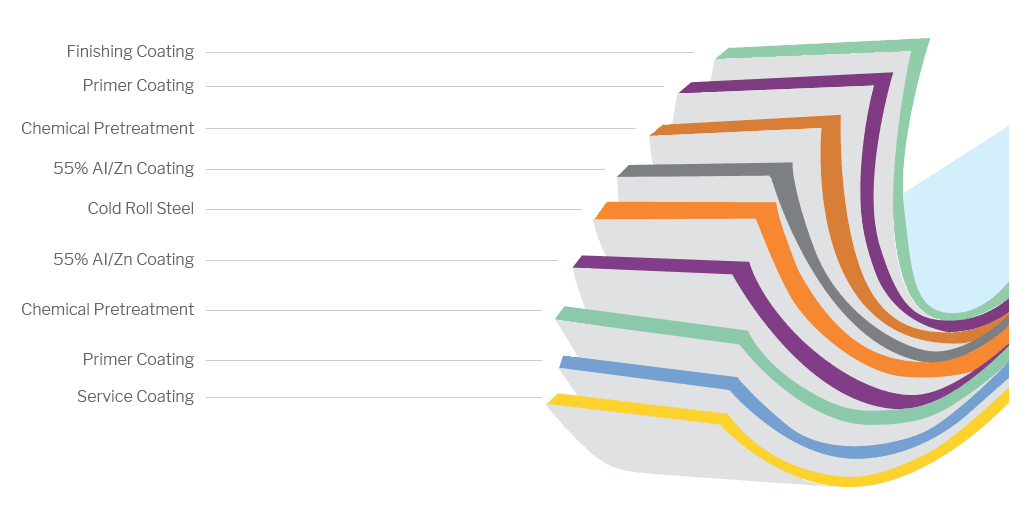

Material Specifications
Materials used meet stringent tests such as tensile strength, QUV simulate, cyclic corrosion, QCT, gloss uniformly, T-bend, impact resistance optical admission.
Base Metal Steel
Complies with JIS G3312; AS1397; MS1196
Minimum Tensile Strength
350 to 550 MPa
Base Steel Coating
Zinc Coated (Z18) / Aluminum Zinc 55% Coated (AZ150)
Primer Coat: Epoxy Finish (Top Coat)
Standard Paint System
Regular Polyester / Silicon Modified Polyester (SMP) / Poly Vinyl Fluorine (PVF2) Service (Backer): Polyester
Paint Coating Thickness
5 - 10μmmax
Service (Baker) Coat Primer
5 - 10μmmax
Coat Finish Coat
15 - 25μmmax
Primer + Finish Coat
20 - 35μmmax
